This series of products
adapt for straightening round bar &tubular
product and non-ferrous metal ones (aluminum
alloy, red copper and brass) and widely
used for other auxiliary equipments
in steel tube factory, copper tube factory,
cold drawn steel works and standard
components factory etc.

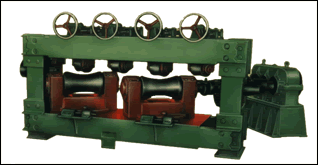

W56-30 hyperbolic
roller section bar straightener
编号
名称
数值
单位
1
可校杆料
最大直径
30
毫米
最小直径
10
毫米
2
可校管料
最大直径
40
毫米
最小直径
10
毫米
3
电动机转速
1440
转/分钟
校直速度
58
转/分钟
4
传动辊回转角
29o-32o
5
压辊回转角
29o-32o
6
压辊调节最大距离
24
毫米
7
电动机
型号
Y132M-4
功率
7.5
千瓦
转速
1440
转/分钟
8
油泵电动机
型号
DB-25A
功率
0.12
千瓦
转速
3000
转/分钟
9
外形尺寸
长
8475
毫米
宽
2665
毫米
高
1450
毫米
Model L6-80 hyperbolic
roller straightener
1.Straightened bar diameter:
φ30-60
2.Straightened tubing diameter:
φ40-90
3.Maximal wall thickness
of straightened tube:
5
4.Adjustment range of upper-roller:
0-+90
5.Adjustment angle of straightened
roller:
38-42.5°
6.diameter of straightened
roller:
φ220
7.Motor model:
Y200L-b
W56-76 Seven-roller
straightener
Straightened bar diameter
20-50mm
Straightened tubing diameter
25-75mm
Maximal wall thickness of
tubing
7.5mm
Maximal yielding limit of
material
40kg/mm2
Quantity of driving roller
2
Quantity of passive roller
5
Motor Model
Y200L2-b
Motor Power
22kw
Motor Rotating Speed
970r/min
Six-roller hyperbolic
roller-type straightener
el LG2-6 hyperbolic roller-type
straightener mainly adapts for straightening
small-scaled bar and tubular products
of non-ferrous metal industry in copper
material factory, copper tube factory
and aluminum tube factory and other
cold drawn steel works etc.
