Model SZ-300T

Introduction

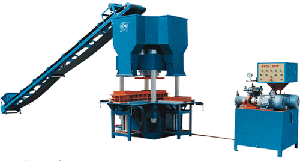

Model SZ-3000Ais a four pole single cylinder hydaulic forming machine,mechanical system,reliable electrical system ,big working size table,(1)2working location distance between poles is 910mm, can press size 750¡Á500¡Á150mm concrete road edge blocks,slope protection blocks etc.(2)4working location distance between poles is 780¡Á780mm , can press size 600¡Á600¡Á150mm concrete road edge blocks,slope protection blocks etc.
This machine complete with:1.automatic mould separtion device 2.fork lifter 3.convey brick machine 4.belt conveyor 5.silo loading device Customer can choose according to their requirement.



Technology Parameter
Maximum pressure
300T

Installed power
15KW¡¢4KW/380V

Maximum product size(2working positions)
750¡Á500¡Á150mm

Maximum product size(4working positions)
600¡Á600¡Á150mm

Total weight
6000kg

Outer dimensions
2285¡Á2285¡Á3870mm
