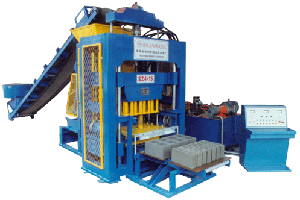

Sz-4-15fully Automatic Brick Forming Machine

Introduction
Sz-4-15fully automatic brick forming machine is fully computerrized and automatic .It is fully hydraulic transmitted and mould box vibrates and pressure head vibrates to form bricks.Time to press is short and efficiency is high very compact.Working two shifts per day,annual productoion will reach3.6-4.5 million pieces of 390*190*190mm hollow block which equals to 50000-60000m3.



Technology Parameter
Quantity of forming
4pieces/mould

Forming cycle
15-20secomds

Production rate
6000-7500pieces/8hours

Agitatio
50kn

Vibrating frequency
2900minut

Total installed power
28.15KW

Outer measurement
4000¡Á2000¡Á2850mm

Weight of structur
6000kg

Among which£ºOil pump motor
11KW¡«1

Mould box vibrating motor
3KW¡«2

Material transporter motor
75KW¡«2units

Delivery board and product motor
0.75KW¡«1units
