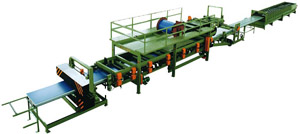

XBJ-VI laminator for
corrugated sandwich panel mainly consists
of a roll forming machine and a sandwich
Panel laminating system.Through this
line,corrugated sandwich panels can
be produced directly,without the shortcoming
that traditional corrugated sandwich
panels have to be laminated manually
after the forming of corrugated sheet.Moreover,both
the roll forming machine and the laminating
system can work independently.The roll
forming machine of the line consists
of feeding system,roll forming systm
and cutting system,while the laminating
system is made up of such equipment
as decoiler, feeding, squeezing, heating,
laminating,edge rolling,edge turn-over,groove-making,edge
pruning,pneumatic device,automatic cutting
and PLC.The whole machine possesses
advanced working crafts,merging mechanical
and electrical equipment into an organic
whole.Annual production of this line
eight hours a day is about 500,000 square
meters.
Features:
Beautiful appearance,low noise,high
efficiency
Multiple
function:besides corrugated
sandwich panels,this line can
be used to produce simple corrugated
sheets,and model XBJ-&XBJ-
sandwich panels.
The
transmission of the laminating
system is achieved by worm and
worm gear which make the laminating
speed smooth and steady.
The
line employs advanced PLC and
sets the panel length and cuts
the panel automatically.
The
main body is welded with type"H"section
steel as its material.The surface
is treated by rotoblast.
Rollers
of the laminating system are
covered with rubber,which is
advantageous to the protection
of the surface color of galvanized
sheets and makes the equipment
laminate steadily.
