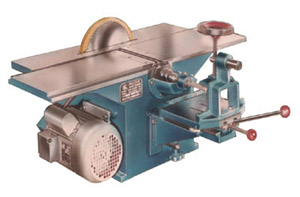

Model MQ432A Multi-Use Woodworking Machine

Technology Parameter
Surface planer
Arbor cutting circular dia
¦µ74mm

Arbor speed
3500r/min

Max.planing width
200mm

Max.removal
3mm

No Load Speed
0-3200r/min

1.2 Saw
Blade dia
¦µ250mm

Arbor speed
3500r/min

Max.sawing thickness
70mm

Max.drilling dia
¦µ13mm

Max.drilling depth
90mm

Max.rabbeting depth
10mm

Motor power
1.1kW or 1.5kW

N.W./G.W
113/140kg

Packing size
113¡Á53¡Á45cm
