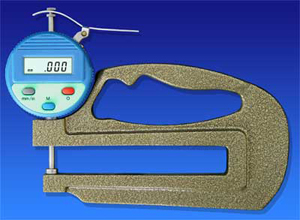

Digital Thickness Gauge
    Features:
    Power on/off.
    Inch/mm conversion at any position.
    Zero-setting at any position.
    Universal purposes with two types of measuring faces.
    Easy to measure the thickness of paper,film,jewelry, cable, metal foil etc.
    Can fast trace Max/Min value.

Technology Parameter
Resolution
Measuring range
 Order No. Accuracy Probe depth
0.01mm(.0005¡å)
0-10mm(0-.4¡å)
 316-150 ¡À0.03mm 30mm
0.01mm(.0005¡å) 0-10mm(0-.4¡å) 316-151 ¡À0.03mm 120mm
0.001mm(.00005¡å) 0-10mm(0-.4¡å) 316-160 ¡À0.009mm 30mm
0.001mm(.00005¡å) 0-10mm(0-.4¡å) 316-161 ¡À0.009mm 120mm
