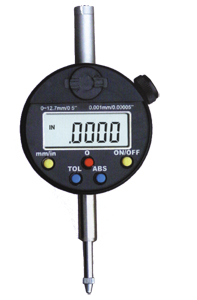

Digital Indicators
    Features:
    Manual power on/off
    Zero setting at any position
    inch/metric conversion
    Wabsolute or increase
    tolerance setting and OK(Go) or ĄŔ NG discrimination
    data output
    water and dust proof
    measuring direction conversion(inside swithch)
    power supply:1.5V button battery
Type A Features:

    Manual power on/off
    zero setting at any posltion
    inch/metric conversion at any position
    presetting display values
    holding measured display values
    fast displaying values
    Max/Min memory for reversal point search
    measuring direction conversion
    data output
    water and dust proof
    power supply:1.5V button battery

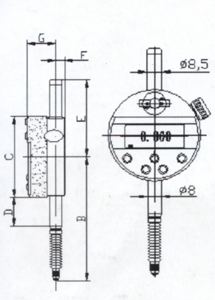

Technology Parameter
Number
Resolution
(mm)
Measuring range
(mm) 		Accuracy
(mm) 		B
.(mm)		 C
.(mm)		 D
.(mm) 		E
.(mm) 		F
(mm)		 G
(mm)
Water and
Dust Proot

314-820C
(SxB 151)
0.001
 0-12.7 0.005 82.5 Ø55 19.5 54 6 24.7
yes

314-802
(SxB 152) 		0.001 0-12.7 0.005 70 Ø55 19.6 52 6 24.7 -
314-801
(SxB 153) 		0.001 0-6.5 0.005 64.5 Ø44 15.5 41.5 8.9 25.7 yes
314-802A
(SxB 151A) 		0.001 0-12.7 0.005 82.5 Ø55 19.5 54 6 24.7 yes
314-802AC
(SxB 152A) 		0.001 0-12.7 0.005 70 Ø55 19.6 52 6 24.7 -
314-801A
(SxB 153A) 		0.001 0-6.5 0.005 64.5 Ø44 15.5 41.5 8.9 25.7 yes
