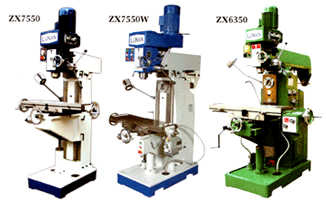

SPECIFICATIONS  /  MODEL		ZX7550	ZX7550W	ZX6350
MAX. DRILLING DIA. (mm/inch)		50 (2)	50 (2)	50 (2)
MAX. HORIZONTAL MILLING DIA. (mm)		100	100	100
MAX. HORIZONTAL MILLING DIA. (mm)		25	25	25
MAX. TAPPING DLA. (mm)		M16	M16	M16
MAX. BORING DIA. (mm)		120	120	120
SPINDLE SPEEDS (R. P. M.)	VERTICAL (8 STEPS)	230~1825	230~1825	115~1750
	HORIZONTAL		80~1300 (9 STEPS)	60~1200 (12 STEPS)
DISTANCE BETWEEN SPINDLE AND COLUMN (mm)		155~555	155~555	200~550
DISTANCE BETWEEN SPINDLE AND TABLE (mm)		90~490	90~490	100~480
DISTANCE BETWEEN HORIZONTAL SPINDLE AND TABLE (mm)			0~400	0~380
SPINDLE TRAVEL (mm)		120	120	120
TABLE TRAVEL (mm)		400×230	400×230	600×250
TABLE SIZE (mm)		800×240	800×240	600×250
MOTOR POWER (KW)	VERTICAL	0.85/1.5	0.85/1.5	0.85/1.5
	HORIZONTAL		1.1	2.2
NET/GROSS WEIGHT (KGS)		610/7707	700/880	1300/1480
