		Milling & Drilling machine ZAY7020/7030/7040/7045

Product Infomation

MODEL	ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drlling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capcaity	14mm	20mm	32mm	32mm
Max.distance from spindle nose to table	382mm	450mm,680mm	450mm,680mm	450mm,680mm
Min.distance from spindle axis to column	202mm	193.5mm	193.5mm	193.5mm
Spindle travel	120mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle	12	12	12	12
Range of spindle speed 50Hz	80-2080r.p.m.	80-2080r.p.m.	80-2080r.p.m.	80-2080r.p.m.
60Hz	100-2150r.p.m.	100-2500r.p.m.	100-2500r.p.m.	100-2500r.p.m.
Swing diameter of headstock	405mm	405mm	405mm	405mm
Swivel angle of headstock(horizontally)	±360^O	±360^O	±360^O	±360^O
(perpendicularly)
Size of table	585x190mm	800x240mm;700x240mm	800x240mm;700x240mm	800x240mm;700x240mm
Forward and backward travel of table	150mm	175mm	175mm	175mm
Left and right travel of table	380mm	500mm;400mm	500mm;400mm	500mm;400mm
Power	0.75Kw(1Hp)	0.75Kw(1Hp)	1.1Kw(1.5Hp)	1.5Kw(2Hp)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Overall height (Without stand)	1060mm;1300mm	1060mm;1300mm	1060mm;1300mm	1060mm;1300mm
Net weight	270Kg	280Kg	283Kg	285Kg
Gross weight	320Kg	330Kg	333Kg	335Kg
Packing size	880x770x1140mm	880 x770x1140mm 880x770x1400mm 1030x832x1140mm 1030x832x1400mm	880 x770x1140mm /880x770x1400mm 1030x832x1140mm 1030x832x1400mm	880 x770x1140mm 880x770x1400mm 1030x832x1140mm 1030x832x1400mm
Loading amount(overall height) 1060mm	36pcs/20'container	36pcs/20'container	36pcs/20'container	36pcs/20'container
1300mm	18pcs/20'container	18pcs/20'container	18pcs/20'container	18pcs/20'container

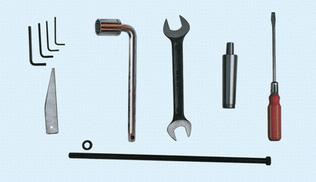

MODEL ZAY SERIES MILLING & DRILLING MACHINE STANDARD ACCESSORIES:
1. Allen wrenches 3,4,5,6mm
2. Wedge
3. Wrench
4. Drill stock
5. Screw driver 6”
6. Drawbar, washer

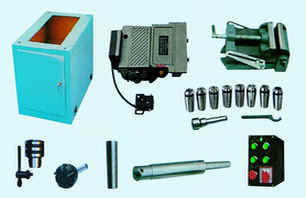

MODEL ZAY SERIES MILLING & DRILLING MACHINE OPTIONAL ACCESSORIES:
1. Machine stand
2. Power feed attachment
3. Paraller vice
4. Drill chuck
5. Milling cutter holder
6. Change sleeve
7. Milling chuck
8. Boring bar
9.Auto-tapping electrical system
Attention:(ZAY7045/ZAY7040/ZAY7032/ZAY7020/ZAY7045W/ZAY7040W/ZAY7032W/ ZAY7045FW/ZAY7040FW/ZAY7032FW/ZAY7045FW-1/ZAY7040FW-1/ZAY7032FW-1,No accessories for No.9 item )
