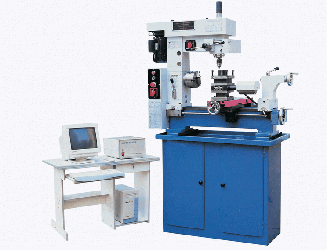

This
machine is design according to CE
standard on the basis of HQ500 and
HQ800.working table can automatically
or handedly feed in the longitudinal
and cross direction. Drilling and
milling unit can turn up to 180¡ã and
can work separately with the function
of drilling and milling micro feeding.
furthermore it can be controlled by
personal computer when connecting
with it. With the lengthening bed
of CNCHQ800,more processing ranges
are available.
Product Infomation
MODEL
HQ500
TURNING
Swing
over bed
420mm
Distance
between centers
500mm
Max.longitudinal
travel
440mm
Max.cross
travel
200mm
Taper
of spindle
M.T.4
Spindle
hole
28mm
Step
of speed
7
Range
of speed
160-1360r.p.m
Barrel
travel
70mm
Taper
of center
M.T.3
Metric
thread range
0.2-6mm
Inch thread
range
4-120T.P.I.
Longitudinal
range of automatic feeding
0.05-0.35mm
(0.002-0.014¡å)
Cross
range of automatic feeding
0.05-0.35mm
(0.002-0.014¡å)
DRILLING
& MILLING
Drilling
capacity
¡é22mm
Table
size(L x W)
475x160mm²
End
mill capacity
¡é28mm
Face
mill capacity
¡é80mm
Max.distance
between spindle center and
column
285mm
Max.distance
between spindle nose and table
306mm
Spindle
travel
110mm
Spindle
taper
M.T.3
Steps
of spindle speed
16
Range
of spindle speed
120-3000r.p.m.
Swivel
angle of headstock
¡À180°
MOTOR
Motor
power
0.55Kw
Drill
and mill mait motor
0.55Kw
Voltage/Frequency
As
customer's requirement
Motor
speed
1400r.p.m.
SHIPMENT
DATA
Overall
size
1460
x 580 x 965mm
Packing
size
1130
x 580 x 1100mm
Net
weight/Gross weight
245kg/280kg
Loading
amount
40pcs/20'container
MODEL
HQ SERIES MULTI-PURPOSE MACHINE
STANDARD ACCESSORIES:
1.
Gears
2.
Centers
3.
3-jaw chuck
4.
Allen wrenches
5.
Tool post wrench
6.
Wedge
7.
Double end wrench
8.
??Screw driver
9.
Tie rod washer
10.
Tie rod
11.
Drill stock
MODEL
HQ SERIES MULTI-PURPOSE MACHINE
OPTIONAL ACCESSORIES:
1.
Machine stand
2.
Protection for tool post
3.
Protection for chuck
4.
Protection spindle of drilling
and milling unit
