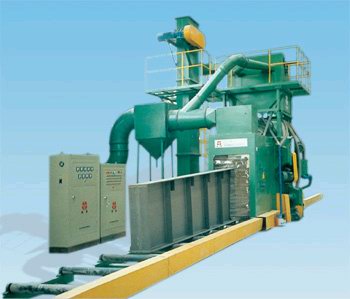

H-beam Shot-blasting and Cleaning Machine System
     Features
¡ñThe series is used for pretreatment of the surface of the H-beam and other steel materials.
¡ñThree-dimension dynamic simulating design is adopted, to locate the position of the shot-blasting machine.
¡ñEffective blasting and auto control are controlled with PLC programming control and photo-detecting device.
¡ñA highly efficient filter-barrel pulse back-blowing dust is equipped.



Specifications
¡¡
Size of the work-piece Section(W¡ÁH) 600¡Á1200mm 80¡Á1600mm 1000¡Á1800mm
Length of the work-piece 3000-12000mm 3000-12000mm 3000-12000mm
Quality standard Cleanness of the surface A-B Sa2¡«Sa2½ A-B Sa2¡«Sa2½ A-B Sa2¡«Sa2½
Roughness of the surface 15¡«50¦Ìm 15¡«50¦Ìm 15¡«50¦Ìm
Shot-blasting machine Quan 4 8 8
Quan of shot-blasting 4¡Á250Kg/min 8¡Á200Kg/min 8¡Á250Kg/min
Power 4¡Á15kw 8¡Á11kw 8¡Á15kw
Inlet and outlet conveyor Allowable load 1000Kg/m 1000Kg/m 1000Kg/m
Conveying velocity 0.4-4m/min 0.4-4m/min 0.4-4m/min
Ventilation capacity 15300m3/h 15300m3/h 20400m3/h
Circulating quan of the shots 70T/h 96T/h 120T/h
Nominal size(L¡ÁW¡ÁH) 24000¡Á3640¡Á5100mm 26400¡Á4105¡Á6030mm 32100¡Á4555¡Á6500mm
Depth of the pit 1490mm 2090mm 2210mm
Total power 106.7kw 137kw 183.9kw
