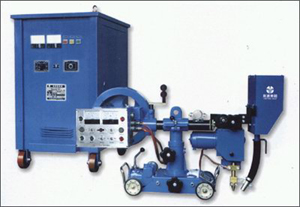

Auto-submerged Are Welding Machine Series
     Features
¡ñElectronic circuit system is adopted. And it is mature in technology, and is stable in performance.
¡ñThe series are used to weld butt-welds with grooves or without grooves, overlapped welds and fillet welds.
¡ñThe series are used to weld the welds on horizontal or the welds on the inclined plane less than 15o.
¡ñThey are convenient in operation and reliable in working.



Specifications
¡¡
Type Rated welding current£¨A) Open circuit voltage£¨V£© Duty cycle£¨A) Current adjustable range£¨A) Diameter of wire£¨mm) Welding velocity£¨m/h) Horizontally movable range of the welding head£¨mm) Vertically movable range of the welding head£¨mm) Weight of the tractor£¨Kg)
MZ-1-630 630 70 60 150-630 2-3.2 15-70 <50 <60 53
MZ-1-1000 1000 80/90 80 200-1000 3-6 15-75 <60 <85 70
MZ-1-1250 1250 75 60 250-1250 3-6 15-75 <90 <90 110
