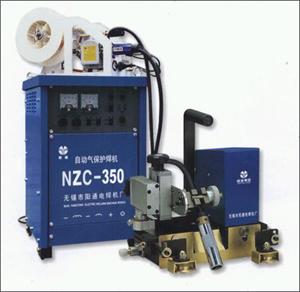

Gas Shielded Welding Machine Series
     Features
¡ñHigh-precise integrate-circuit system is adopted, and ascendant in control performance, strong in anti-interference ability.
¡ñSmall ball on the top of the wire can automatically be removed by FTT control system. And start arc is reliable.
¡ñCentralized or separate adjustment feature is realized.
¡ñThe series have functions such as supplying gas ahead of time, delayed cutting off gas and extinguishing arc.
¡ñHigh-efficient double-drive print-motor wire feeding mechanism is adopted, to assure welding process stable.
¡ñWelding arc is stable, and spatter is little. It is easy to start arc, is high-efficient in working, and is very small influence by the supply voltage.



Specifications
¡¡
Type Duty cycle£¨£¥£© Rated welding current£¨A) Rated welding voltage£¨V) Diameter of wire£¨mm) Welding velocity£¨m/h) Horizontally adjustable range of the welding torch£¨mm) Vertically adjustable range of the welding torch£¨mm) Weight of the tractor£¨Kg)
NZC-350 60 350 18-41.5 1-1.6 18-120 ¡À25 <70 20
NZC-500 60 500 22-50.5 1-1.6 18-120 ¡À25 <70 20
