Electronic-hydraulic
proportional servo synchronization,free
point control within stroke
range,repeated precision at
¡À0.01,parallelism 0.02.
Lower working table is fitted
with warp offset oil cylinder
(fig above),upper mold is fitted
with warp offset mechanism or
lower working table with imported
manual/electrical cam apparatus(fig
below),model from 250t up have
boyh upper and lower working
tabies fitted with warp offset
machanism.
Fitted with Delem company of
Holland (or Cyblec Co.land)exclusine
computer,system,grating meter,hydraulic
transmission system with valve
assembly and servomotor all
imported.
Very strong anti-deviation capability.
The sliding block(Y1Y2),rear
stopper(X,R,Z) and master pressure
control by computer,ball roller
leading screw rolling guide
rail are adopted to rear stopper
to get high precision in repeated
positioning.
Optional digital control,mechanical
robot or flexibility machining
center forsheets with 7 axis
and up.

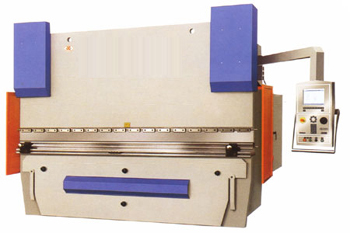

WE67K Multimachine Tandem Press
Brake:
Single machine performance identical
to WE67K series.
When in multi machine operation
electrical-hydraulic Servo sysytem
are adopted to provide sensitivity
and reliabiliyt and high anti
deviation capabiliyt,good synchronization
and integrated operation.
Optional to single operation,interactive
operation or integrated operation.
