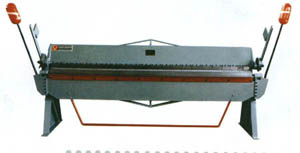

W06 Series Hand Folding Machine
    Features & Characteristics:
    The hand folder is the culmination of many years' experience on the development, manufacture andapplication of hand bending machine. This style of brake incorporates all the outstanding featrues of various hand brake. Particularly, it has removable, dividual upper mould for bending different length. This machine can be used to form a box and pan having four sides and a bottom from one plate maetal sheet. In addition, a narrow return flange on the top of a box can be made as in the manufacture of electric switch boxes. With the full length upper mould in place, the machine becomes a straight bending brake. the hand folders are used by manufactuers for forming electrical and electronic switch boxes, fuse boxes,etc. They are in great demand both at home and abroad due to small size, energy-saving, high efficiency and wide usage.




Technology Parameter
Parameter Specification WO6-2.5
¡Á1000
WO6-2.5
¡Á1220
WO6-2.5
¡Á1520
WO6-2
¡Á2000
WO6-2
¡Á2500
WO6-1.5
¡Á3050

Bending(mm) 1000 (40) 1220 (48) 1520 (60) 2000 (79) 2500 (99) 3050 (120)
Folding thickness for mild stee(mm) 2.5 2.5 2.5 2 2 1.5
Dimensions(L¡ÁW¡ÁH) 1800¡Á915
¡Á1680
2160¡Á915
¡Á1680
2480¡Á915
¡Á1680
2920¡Á915
¡Á1780
3620¡Á915
¡Á1880
4170¡Á915
¡Á1880

Net Weight(kg) 500 580 850 1200 1500 1900
12¡Á2500 12 2500 1¡ã30' 650 18.5 3235¡Á2045¡Á1935
12¡Á3200 12 3200 2¡ã30' 650 18.5 3950¡Á2910¡Á2250
