¡ùEasy
operation
¡ù3axis Automatic by hydraulic
¡ùRapid mechanical up and down feed
¡ùPrecision liner ball guide way
¡ùMicro adjustment for vertical feed
¡ùOne shot lubrication
¡ùTurcite for column and worktable
¡ùmagnetic chuck
¡ùFloor coolant system
¡ùCasting iron cabinet

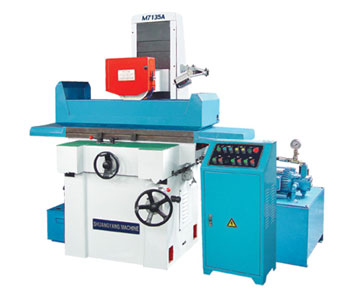

Specifications
Model
M7135A-¢ñ
M7135A-¢ò
Capacity
Max.dim
of grinding component(L*W*H)
600*350*430mm
800*350*430mm
Max.longitudinal
travel
620mm
820mm
Max.cross
travel
390mm
390mm
Max.distance
form spindle center to table
surface
580mm
580mm
Max.load
of worktable
360kg
400kg
Work table
Worktable
surface(L*W)
600*350mm
800*350mm
T-slots
of worktable
18*3mm*N
18*3mm*N
Speed of
worktable
0-26m/min
0-26m/min
Feed-rate
of hand wheel
1 scale
0.02mm
0.02mm
Backward
and forward Automatic feed
0.5-20mm
0.5-20mm
Abrasiue
wheel
Abrasive
wheel dim.(D*W*d)
300*32*75mm
300*32*75mm
Spindle
Speed
1450r/min
1450r/min
Vertica
mechanism
Vertical
movement per cirele of microadjusting
mechanism
