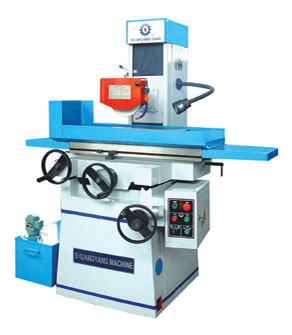

Surface grinding machine M7125
     Features:
※Easy operation
※Turcite for cross way
※Precision liner ball guide way
※Micro-adjust device for vertical feed
※One shot lubrication
※Magnetic chuck
※Floor coolant system
※Casting iron cabinet



Specifications

Model
M7125
Table working surface(LxW)
 500*250 mm
Max.distance from spindle center to table surface
 450mm
Max longitudinal travel
510mm
Max cross travel 282mm
Backward and forward hand feed Per rev 3mm
Per scale 0.02mm
Vertical micro feed rate Per rev 0.05mm
Per scale 0.005mm
Spindle motor Speed 2850r/min
Power 1.1kw
Abrasive wheel dim. 200*16*31.75
mm
weight Net wet 800kg
Gross wet 890kg
Machine dimension

1250x1150x1700mm
Overall dimension 1450x1200x1900mm
