¡ùEasy
operation
¡ùPrecision liner ball guide way
¡ùMicro-adjustment for vertcal feed
¡ùRapid vertical up and down feed
¡ùOne shot lubrication
¡ùMagnetic chuck
¡ùFloor coolant system
¡ùCasting iron cabinet
Specifications

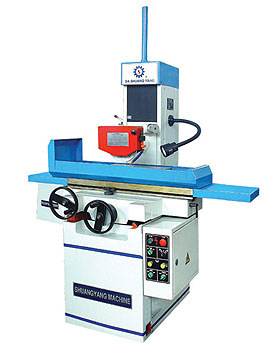

Model
M230-1
Table
working surface(LxW)
450x230mm
Max
grinding piece(LxWxH)
450x230x380mm
Longitudinal
travel
500
mm
Table
T slots
1
Cross
travel of table
250mm
Cross
feed for each turn of hand
wheel
3mm
Cross
feed dial graduated to
0.02mm
Speed
of wheel head elevation
144mm/min
Wheel
feed for each turn of handwheel
0.01mm
Size
of grinding wheel(D*W*d)
200*16*31.75
mm
Grinding
Speed at 50HZ
2850r/min
Grinding
wheel motor power
1.1kw
Work
piece surface finish ground
parallel with the datum
surface
