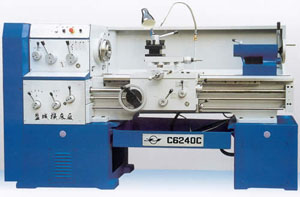

		CC Series Horizontal Lathe
		Features:
	Guideways ultrasonic frequency quenched to ensure a long service life Guideways ground to ensure high accuracy Spindle bore φ52mm and the spindle nose conforms to ISO-C6 Gears in headstock precisely ground to reduce noise Feeding box well sealed to eliminate leakage Kinds of threads Tailstock locked by thread or camlock Electric system is reliable and safe Electromagnetic brake at users option

Technology Parameter

Item Model		C6136C C6236C	C6140C C6240C	C6150C C6250C
CAPACITY	Max. swing over bed (mm)	360	400	500
	Max. swing over cross slide (mm)	190	230	330
	Max. swing in gap (mm)	520	560	660
	Center distance	750、1000、1500mm
	Bed width	360mm
SPINDLE	Spindle hole	52mm
	Spindle nose	C6
	Spindle taper	MT6
	Spindle speeds (Number)	40-1400rpm (9Steps),1600rpm optional
FEEDS	Metric threads range(Kinds)	0.25-14mm (20 Kinds)
	Inch threads range (Kinds)	2-40/inch
	Module threads range (Kinds)	0.5-3.55mm(11Kinds)
CARRLAGE	Cross slide travel	180mm		222mm
	Compound rest travel	95mm
	Cross-section size of toolshank	20*20mm²
TAILSTOCK	Taper of tailstock sleeve	MT4
	Dia. of tailstock sleeve	65mm
	Travel of tailstock sleeve	140mm
Main motor power		4kw		5.5kw
Packing size (LWH) (mm)
Center distance: 750mm		222011501590mm
1000mm		247011501590mm
1500mm		297011501590mm
Net Weight/Gross Weight
Center distance: 750mm		1350/2000	1400/2050	1500/2150
1000mm		1450/2100	1500/2150	1600/2250
1500mm		1600/2250	1650/2300	1750/2400
