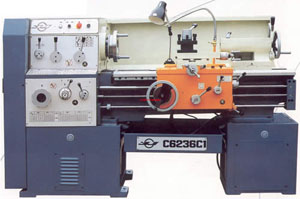

CC1 Series Engine Lathe
    Features:
   Gear box upgraded on the basis of CC series lathe, so as to free operators free the trouble from exchange gears, and to enlarge thread ranges
Guideways ultrasonic frequency quenched to ensure a long service life
Guideways ground to ensure high accuracy
Spindle bore ¦Õ52mm and the spindle nose conforms to ISO-C6
Gears in headstock precisely ground to reduce noise
Feeding box well sealed to eliminate leakage
Full Series of threads
Tailstock locked by thread or camlock
Electric system is reliable and safe
Foot brake or electromagnetic brake at users option

Technology Parameter
Item                              Model
C6136C1
C6236C1
C6140C1
C6240C1
C6150C1
C6250C1
CAPACITY
 Max. swing over bed (mm)
360
400
500
Max. swing over cross slide (mm)
190
230
330
Max. swing in gap (mm)
520
560
660
Center distance
750¡¢1000¡¢1500mm
Bed width
360mm
SPINDLE
 Spindle hole
52mm
Spindle nose
C6
Spindle taper
MT6
Spindle speeds (Number)
40-1400rpm (9 Steps),1600rpm optional
FEEDS
 Metric threads range(Kinds)
0.25-7mm (17 Kinds)
Inch threads range (Kinds)
5-144TPI£¨30 Kinds£©
Module threads range (Kinds)
0.25-3.5mm(12 Kinds)
Diametral Threads range (Kinds)
10-288§Ý/inch (30 Kinds)
CARRLAGE
 Cross slide travel
180mm
222mm
Compound rest travel
95mm
Cross-section size of toolshank
20*20mm2
TAILSTOCK
 Taper of tailstock sleeve
MT4
Dia. of tailstock sleeve
65mm
Travel of tailstock sleeve
140mm
Main motor power
4kw
5.5kw
Packing size (L*W*H) (mm)
Center distance: 750mm
2220*1150*1590mm
        1000mm
2470*1150*1590mm
        1500mm
2970*1150*1590mm
Net Weight/Gross Weight
Center distance: 750mm
1350/2000
1400/2050
1500/2150
        1000mm
1450/2100
1500/2150
1600/2250
        1500mm
1600/2250
1650/2300
1750/2400
