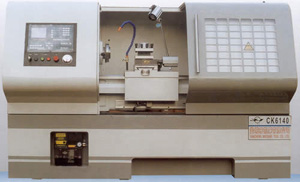

CK6140*1000 CNC Lathe
    Features:
   SINUMERIC 802C controller, with standard cycle and self-diagnose functions, and a menu in multiple languages
Modular structure, and connectable to PG& PC through RS232C interface
Main spindle supported with high precision roller bearings of IBC brand made in Germany, so as to ensure high turning precision at infinitely variable speeds, the maximum being 2100rpm
Full-closed gurad, steamlined design
Quick change toolpost, or 4-station toolpost, or electric tool disc is available
High function/price ratio and perfect after service.

Technology Parameter

Item                        Modle
CK6140
CAPACITIES
Max. swing over bed mm
420
Max. swing over carriage mm
200
Max turning length mm
1000
Bed width
330
TRAVEL
X axis travel mm
230
Z axis travel mm
1080
SPINDLE
Spindle speed rpm
150-600-2100 Infinitely Variable
Spindle nose mm
C6
Spindle taper
Metric70
Spindle hole
65
TURRET
Number of stations
4£¨6£©
Tool shank size mm
25*25
Indexing time sec
2.0
FEEDS
Rapid traverse of X axis mm/min
3000
Rapid traverse of Z axis mm/min
6000
Cutting feed X and Z axis mm/r
0.005-100
TRALSTOCK
Taper of tailstock sleeve
MT5
Dia. of tailstock sleeve
65
Travel of tailstock sleeve
100
MOTOR
Main motor power kw
5.5
X and Z axis motor Nm
6£¬11
L*W*H mm
2420*1567*1512
Net weight kg
2600
Type of CNC Controller
SINUMERIK 802C»òGSK980T
