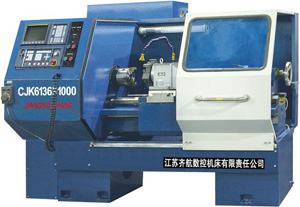

CJK 6136 6140 6150 CNC Lathe





Technology Parameter

MODEL
CK6136
CK6140
CK6150
Max.swing over bed
360mm
400mm
500mm
Max.Swing over cross slide
180mm
220mm
320mm
Max.length of workpiece
750 1000 1500mm
Spindle hole
Dia 52mm
Spindle taper
M.T.6#mm
Spindle speed(Stepless)
400-3000mm or 300-2000mm
Main Motor Power
5.5/7.5
Diameter of tailstock quill
Dia 70
Bove taper of tailstock quill
M.T.4#
Travel of tailstock quill
140
torgue of servo motor
3(or6),6mm
Max.Distance of Transverse moving
200
Max.Distance of longitude moving
530,830,1330mm
Feed resoving factor
0.005/x 0.01/z
X Speed of high-speed movement
5
Z Speed of high-speed movement
8
X repeatablity
0.01
Z repeatablity
0.015mm
Compound rest travel
0.005mm
Repeatablity Accuray of tool post
0.008mm
Roughness of workpiece
Ra<=1.25 Ra<=0.8mm
NET:WEIGHT
2500,3000,3500
FLOOR SPACE(L*W*H)
1750*1700*1800mm
1850*1000*1800mm
2350*1000*1800mm
