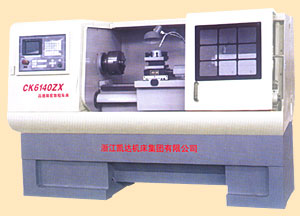

This machine is a CNC lathe
controlled by a microcomputer and driven
by servo motors. It is suitable for
turning cylindrical and taper faces,
boring, grooving and cutting threads
(including taper threads).
Features:
The machine adopts ISO International
Code, Keyboard Manual Date Input, and
it is also provided with program of
power cut-off protection and the functions
of automatic diagnosis, and with RS232
interface.
Longitudinal and cross feeds are effected
by ball leadscrews .
Either vertical or horizontal 4 station
or 6 station tool post or gang tools
can be selected. The post is located
on precision contrate gears with a high
repeated positioning accuracy.
Hydraulic chuck, manual chuck, manual
tailstock and hydraulic tailstock are
available for your choice.
The surface of the bedways is supersonic
frequency hardened and precision ground
with a long service life.
The spindle bore size is 80mm.The spindle
system is high in the rigidity and accuracy£¬
there is no vibration when turning with
a cutting depth of 8mm. An inverter
is used to realize variable speed.
