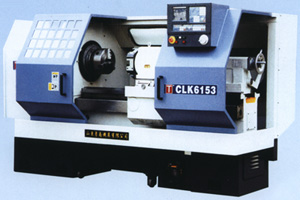

Main Parameter	CLK6153
Max.swing over bed (mm)	530
Max.swing over cross slide (mm)	300
Spindle speed (r/min)	180-1800( no grade)
Z travel (mm)	850
Distance between centers (mm)	1000
X travel (mm)	340
Hole through spindle (mm)	75
Spindle taper (Ms)	7
Place- precision (mm)	X: 0.016/Z: 0.025
Repeated place precision (mm)	X: 0.007/ Z: 0.01
Min. enactment (mm)	0.001
Max. Z sprindle feed speed (m/min)	8
X sprindle feed speed (m/min)	4
Main motor prower (kw)	7.5
Lathe weight (kg)	2600
Lathe size (mm)	2562X1500X1725
