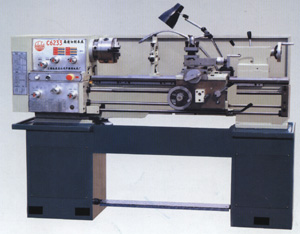

The body is made of high
strenght cast iron and the guide is
cut after hardened. The head box spindle bearings
are D-grade precision bearing The tailstock sleeve has
scales of both metric and British systems. The machine can turn common
17 varieties of threads of British system
and 15 varieties of metric system. Supply either left hand
wheels or right hand wheels to the carrige
on demace. Spindle motor can be quickly
stopped by the pedal. The lathe is ingeniously
constructed,has complete functions and
excellent performanas This lathe can
help you in creating maximum economic
efficiency with lowest possible cost.

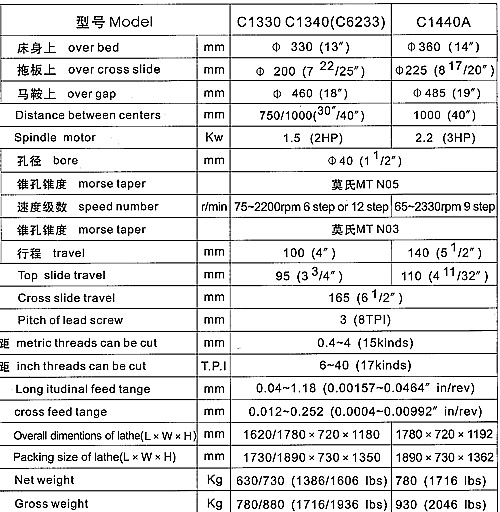

Technology Parameter
The descriptions and specifications given in
the specimen are subject to alteration without
notice.
The body is made of high
strenght cast iron and the guide is
cut after hardened.
