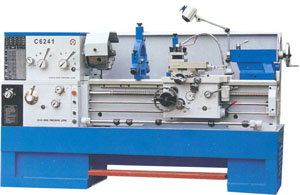

Precision Gear Head Heavy Duty Lathe C6241
Technology Parameter
SPECIFICATON
C6241
METRIC
INCH
Max swing over bed
410MM
16'
Max swing over cross slide
240MM
9-1/2"
Max swing over gap
635MM
25"
Width of bed
335MM
13-1/8"
Distance between center
1000/1500MM
40"/60"
Length of gap
310MM
12"
Taper of spindle hole
M.T.NO.7
Hole through
spindle
80MM
3-1/8"
Step of spindle speed
12 SETS
Range of spindle speed
25-1800R.P.M
Spindle nose
D1-8
Metric thread range
(24)0.5-20MM
Whitworth threads range
(61)1-5/8-72T.P.I
Dia. Pitch range
(45)96--3-1/4 D.P
Module range
(24)0.25-10MM
Range of longitudinal feeds
0.0381-2.32mm/rev
0.0015-0.0913in/rev
Range of cross feeds
0.0152-0.0927mm/rev
0.0006-0.0365in/rev
Pitch and diameter of leadscrew
T34x6
Travel of carriage
889/1397MM
35"/55"
Travel of cross slide
230MM
9"
Travel of top slide
130MM
5-1/8"
Travel of tailstock quill
127MM
5"
Diameter of tailstock quill
75MM
3"
Taper of tailstock quill
M.T.NO.4
Motor
power
7-1/2HP
Net weight
2485KGS
5475LBS
Packing size
2460x1140x1640MM
96-7/8"x44-7/8"x64-9/16"
Standard accessories:
3 jaw
chuck, 4 jaw chuck, face plate, morse reduction sleeve M.T.NO.7/5
Centers MT4, MT5, wrenches, operation manual, steady rest, fillower rest, toolbox with tools
FEATURES:
Hardened and grounded gears in the headstock
With 2 precision tapered and 1 precision ball bearings on 3-1/8"(80mm) bores spindle
13-1/8'(335mm) bed width gives massive support to cariage and tailstock
More over one hundred kinds of inch and metric threads can be gained by one lever with universal gearbox
Featured one-shot lubrication and turcite-B on bed sliding surface with carriage
One- piece cast iron base absorbs vibration allowing heavier cuts
Removable gap(12-7/32"length)(310mm) allows up to 23-5/8"(600mm) diameter
