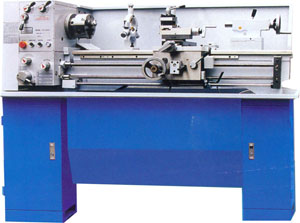

Precision Gear Head Lathe GH-1440A
Technology Parameter
SPECIFICATON
1440A
METRIC
INCH
Max swing over bed
356MM
14"
Max swing over cross slide
226MM
9"
Max swing over gap
480MM
19"
Distance between center
900MM
36"
Taper of spindle hole
M.T.NO.5
Hole through
spindle
38MM
1-1/2"
Range of spindle speed
50-1500R.P.M
or
60-1550R.P.M
Spindle nose
D1-4
Metric thread range
(22)0.35-4.5MM
Inch threads
range
(32)4-56T.P.I
Range of longitudinal feeds
(16)0.113-0.791mm/rev
Range of cross feeds
(16)0.0316-0.268mm/rev
Pitch and diameter of leadscrew
8T.P.I
Travel of carriage
860MM
33-7/8"
Travel of cross slide
130MM
5-1/8"
Travel of top slide
76MM
3"
Travel of tailstock quill
100MM
4"
Diameter of tailstock quill
32MM
1-1/4"
Taper of tailstock quill
M.T.NO.3
Motor
power
2HP
Net weight
460KGS 1015LBS
Packing size
1850x730x760MM
72-7/8"x28-3/4"x30"
Standard accessories:
3 jaw chuck 160mm, 4 jaw c
huck 200mm, steady rest, follow rest, face plate, coolant pump,
coolant pump,
work light, change gears, dial indicator, center and center sleeve, splash guard, chip pan, toolbox with tools.
Optional accessories:
CE chuck guard with micro switch, CE leadscrew cover, toolpost guard
Right handwheel is alternative
CE chuck guard with micro switch, CE leadscrew cover, toolpost guard, taper turning attachment.
FEATURES:
Lathe bed is made of high tensile cast iron. The bed ultrasonic frequency hardening.
With 2 precision D degree taper roller bearings on the spindle
54 types of metric or inch threads are provided, which can be cut by means of levels.
Aluminum change gear guard
All gears, bearings and slide surface have fully effective lubrication.
