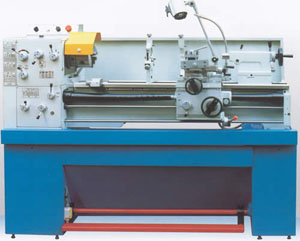

BD Series Bench Lathe
    Features:
   Guideways super-audio frequency quenched and precision ground to ensure long service life and high accuracy
All headstock gears induction hardened and precision ground for smooth shifting and low noise
Quick change D-8 camlock spindle nose for fast chuck removal
Large 1 1/2¡åthru spindle speed bore to enhance bar capacity
9 steps of main spindle speed ranging from 60 to 1200 rpm
With removable gap block to increase swing in front of spindle
With chuck guard, leadscrew hood and tool-post protection board, conform to ¡°CE¡± standards.
Equipped with longitudinal stop
Feed rod and leadscrew interlocked
Tailstock locked by eccentric wheel

Technology Parameter
Item            Model
BD-1220
BD-1230
BD-1340
CAPACITIES
 Max. swing over bed
304£¨12¡å£©
304£¨12¡å£©
330(13¡å)
Max. swing over crossslide
170 (6 3/4¡å)
170 (6 3/4¡å)
204 (8¡å)
Max. swing over gap
304£¨17¡å£©
304£¨17¡å£©
464 (18 1/4¡å)
Center distance
500 (20¡å)
750 (30¡å)
1000 (40¡å)
Cross slide travel
186 (7 1/4¡å)
Bed width
186 (7 1/3¡å)
SPINDLE
 Spindle hole
¦Õ40mm (1 1/2¡å)
Spindle nose
ISO-D5
Spindle taper
Morse No.5
Spindle speeds
60-2000rpm (9Steps)
FEEDS
 Metric threads range (Kinds)
0.25-900 (20 Kinds)
Inch threads range (Kinds)
4-72 Inch (33 Kinds)
Module threads range (Kinds)
0.25-3.5 (12 Kinds)
Diametral threads range (Kinds)
8-144tio (30 Kinds)
TAILSTOCK
 Dia. of tailstock sleeve
¦Õ40 (1 1/2¡å)
Taper of tailstock sleeve
Morse No.3
Travel of tailstock sleeve
115
MAIN MOTOR(kw)
1.1/1.5
NET WEIGHT/GROSS WEIGHT(kgs)
480/580
520/620
650-750
PACKING SIZE (L*B*H) 2SETS(cm)
140*115*167
165*115*167
190*115*167
