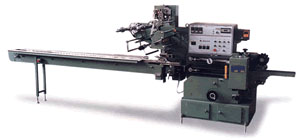

Note:
It is the basic model in the picture,
which can be partially altered according
to requirements.
QNF450
The machine is manufactured
by the Sino-Japan joint venture
with complete Japanese technology
and under the suprvision of
Japanese experts. Born from
advanced Japanese technology
and rich experience, the automatic
high-speed packing machine has
attained advanced world level.
APPLICATIONS
It is suitable for packing
solid articles such as instant
noodles, biscuits, Wudong noodles,
small foodstuff, medicines,
soaps, tissues, popsicles, chocolates,
instant frozen foods, adhesive
tapes, etc. Most suitable models
of machines can be recommended
according to user's products
and requirements.
MAIN TECHNICAL DATA
Capacity:
50-200 packs/min
Bag size
length70-400mm,width32-150mm,higth:5-70mm
Floor space
4400mm*965mm(L*W)
Power consumption
3.7kw,single phase: 220v
Net Weight
1000kg
Packing material
Any heat-melt-cut sealing
materials like paper/PEŁ¬OPP/PEŁ¬OPP/AL/PE
and etc.
