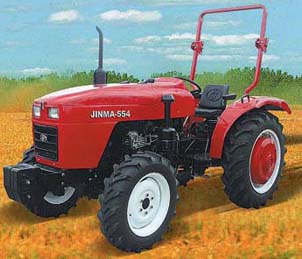

Wheeled Tractor HHJM-554(4WD)
Technology Parameter
Model
HHJM-550
HHJM-554
Drive type
2WD
4WD
Overall Dimensions £¨mm)
Total length
3855
3838
Total width
1830
1625
Total height
2440
2485
Wheel Base£¨mm£©
2007.5
2073
Wheel tread £¨mm£©
Front
1250-1550
1300
Rear
1300-1600
1300-1600
Min ground clearance(mm£©
370
325
Farming ground clearance£¨mm£©
430
375
Tractor weight £¨kg£©
Structural weight
1790
2000
Min use weight
1942
2163
Engine
Model
SL4105BT
Type
4-Cylinder,vertical,water cooled,4-stroke
Power/Rated speed £¨kW/r/min)
40.4/2300
Starting type
Electric start
Displacement£¨L)
3.810
Tire
Front
6.00-16
8.3-20
Rear
12.4-28
12.4-28
Turning radius £¨m£©
With one-side braking
3.8¡À0.3
3.9¡À0.3
Without braking
4.4¡À0.3
4.5¡À0.3
Clutch
Single stage or Dual stage
Brake
Oil bathing ,two disc brake
Gearbox
Two-shaft,meshed gear £¨4+1£©¡Á2 combine or Creeper can be chosen
Steering type
Mechanical steering or Hydraulic steering
Lifting linkage
Rear 3-point hitch, category 2
Rated traction force£¨N£©
11500
14200
Plowing depth control
Draft and position combined,float dominate
Speed (km/h)
Forward
Gear
1st
2nd
3rd
4th
5th
6th
7th
8th
4¡Á(2+1)
2.243
3.293
5.355
7.031
10.070
14.793
24.049
31.576
Creeper
0.336
0.493
0.802
1.053
1.508
2.214
3.600
4.725
Reverse
Gear
1st
2nd
3rd
4th
4¡Á(2+1)
3.327
4.888
7.945
10.433
Creeper
0.498
0.732
1.190
1.562
PTO
Type
Nonindependent or semi-independent
Speed(r/min)
Choose any two of 540,720,1000
