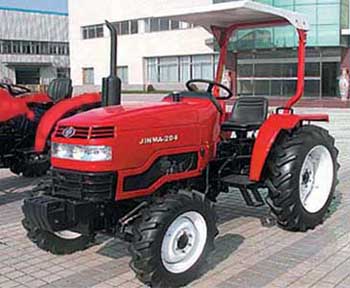

Wheeled Tractor HHJM-204(4WD)
Technology Parameter
Model
HHJM-200
HHJM-220
Drive type
2WD
Overall Dimensions £¨mm)
Total length
2540
Total width
1235
Total height
1288
Wheel Base£¨mm£©
1465
Wheel tread £¨mm£©
Front
970-1270
Rear
900-1020
920-1380
Min ground clearance (mm)
330
Tractor weight £¨kg£©
Structural weight
900
Min use weight
1020
Engine
Model
TY290X
TY295KT
Type
2-Cylinder,vertical,water cooled ,4-stroke
Power/Rated speed £¨kW/r/min)
14.72/2300
16.17/2300
Starting type
Electric start
Tire
Front
4.00-16
Rear
8.3-24
Turning radius £¨m£©
With one-side braking
2.4¡À0.2
Without braking
2.8¡À0.2
Clutch
Single stage or Dual stage
Brake
Foot-controlled shoe type
Gearbox
Spur gear£¨3+1£©¡Á2 or£¨4+1£©¡Á2 compound
Steering type
Mechanical steering or Hydraulic steering
Lifting linkage
Rear 3-point hitch,category 0
Rated traction force£¨N£©
4000
4600
Speed (km/h)
Forward
Gear
1st
2nd
3rd
4th
5th
6th
7th
8th
(3+1)¡Á2
1.93
3.81
6.36
8.92
17.62
29.40
(4+1)¡Á2
1.93
2.94
4.61
6.36
8.92
13.59
21.33
29.41
Reverse
Gear
1st
2nd
(3+1)¡Á2
1.53
7.08
(4+1)¡Á2
2.54
12.27
PTO
Type
Nonindependent or semi-independent
Speed(r/min)
540¡¢720£¬dual speed £¨540¡¢1000£»540¡¢720£©can be chosen
