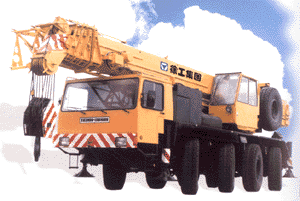

Type	LTM1050
Max.Rated Lifting Capacity(kg)	50000
Max.Lifting Height(m)	55
Main Boom(m)	10.2-38
Jib(m)	5.1-16
Max.Hoisting Moment(kN.m)	1882
Max.Lifting Rope Speed(m/min)	120
Slewing Speed(r/min)	≤2.2
Qutline Dimension(m)	11.5×2.7×3.67
Weight Data(t)	44
Diesel Model	OM422
Max.Power of engline(kw/rpm)	243/2300
Max.Torque of engine(N.m/rpm)	1100/1100
Min.Turing Radius(m)	2.38
Max.Gradeabilitg(%)	50
Max.Trave Ling Speed(km/h)	75
Approach Angle(°)	23
Angle of Departure(°)	27
Qutriggers Di Stance(m)	8.054×7.2
