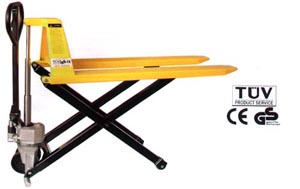

High lift pallet Truck
#High lift pallet truck
#Ideal design, pallet truck with the numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
#Telescopic jack composed of 3 piston rods creating light pumping force giving great rigidity.
#Support legs come into operation automatically. It prevents the unit from moving when the forks are raised to keep the safety of the operator.
#Reliable oil leak-proof hydraulic system.
#Truck automatically shows the descending speed when heavy goods loaded to help prevent cargo damage.
# 210 degree turning radius.
#Reduces physical effort and considerably improve the ergonomic conditions at work stations by raising the trucks to the desired height.
#2 lateral stabilizers when raised ensure good stability.
Technology Parameter
Model
JF
Capacity
(kg)
1000
Total lift height
H2(mm)
800
Lowered fork height
H1(mm)
85
Height of handless
H3(mm)
432
Fork length
L(mm)
1150
Width over the forks
W(mm)
520,550,685
Steering wheel
A(mm)
Ø180*150
Fork wheel
B(mm)
Ø74*50
Truck weight
(kg)
95-115
