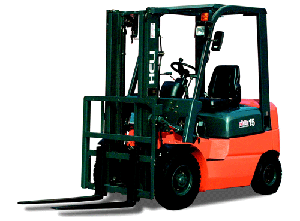

Counterbalance Gasoline Engine Forklift Truck
Technology Parameter
model
unit
CPQ15,CPQD15
load capacity20
kg
1500
load center
mm
500
max.fork height
mm
3000
free lift
mm
155
lifting speed
mm/s
650
travel max.speed
km/h
14.5
max drawbar pull
kg
950/1450
max grade ability(with /wiht out load)
%
23/27
tilt angle(F/B)
deg.
6/12
min turning radius
1955
RASA
mm
1770
min.under-clearance
mm
110
overall length(with fork)
mm
3151
overall length(without fork)
mm
2231
overall width
mm
1070
overall height(with overhead guard)
mm
2070
overall height(with mast)
mm
1995
overall heght onflifting
mm
4030
whell base
mm
1400
tread(front/rear)
mm
890/920
fork(L/W/T)
mm
421/410
opening of forks
mm
920/100/35
engine type
200-950
rated horse power
kw/rpm
Nissan H15KA25.7/2400
rated torque
N.m/rpm
112.8/1600
battery voltage/capacity
V/Ah
12/50 or 20
tire(front)
6.50-10-10PR
tire(rear)
5.00-8-8PR
service weight
kg
2590
