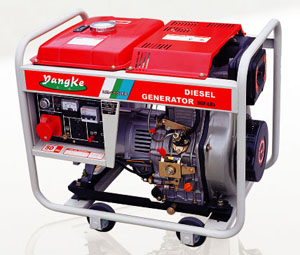

Air-cooled Diesel Generator Set 5GF-LE3
     Features:
YANGKE series air-cooled diesel generator is
power uses the extremely light type, air-cooled,
four-stroke and directly injection diesel engine. The set owns forms of the recoil start and of
the electric start, the big fuel tank, the automatic voltage stabilization device, circuit protector, AC and DC double output device, low oil pressure
alarm and automatic stop devices.



Technology Parameter
Model
5GF-LE3
Rated frequency (Hz) 50 60
Rated voltage (V) 400 / 230 416 / 240
Rated current (A) 7.2 8.3
Rated output power (kVA) 5.0 6.0
DC output 12V / 8.3A
Power factor (cos¦Õ) 1.0
Phase Three-phase
Dimension (L¡ÁW¡ÁH) (mm) 720¡Á480¡Á650
Packing size (L¡ÁW¡ÁH) (mm) 745¡Á505¡Á660
Net / Gross weight (kg) 100 / 107
Structure model Open-frame
Engine model YK186FE
Engine type
Single-cylinder, 4-stroke, air-cooled,
direct-injection, diesel engine
Displacement (cc)
406
Compression ratio
19:1
Rated output / Speed [kW(HP)/rpm)
5.7 (7.8) / 3000
Starting system
Electric starting
Fuel tank capacity (L)
13.5
Lube capacity (L)
1.65
Fuel type
Diesel 0# (summer), diesel -10# (winter)
Lube brand
SAE10W30 (above CC grade)
Low oil pressure alarm system
With
