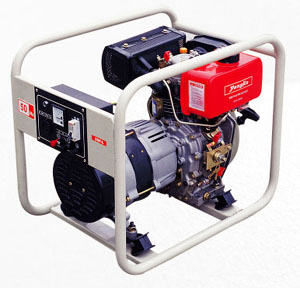

Air-cooled Diesel Generator Set 2GF-L
     Features:
YANGKE series air-cooled diesel generator is
power uses the extremely light type, air-cooled,
four-stroke and directly injection diesel engine. The set owns forms of the recoil start and of
the electric start, the big fuel tank, the automatic voltage stabilization device, circuit protector, AC and DC double output device, low oil pressure
alarm and automatic stop devices.



Technology Parameter
Model
2GF-L
Rated frequency (Hz) 50 60
Rated voltage (V) 230 240 / 120
Rated current (A) 7.4 8.3 / 16.7
Rated output power (kVA) 1.7 2.0
DC output 12V / 8.3A
Power factor (cos¦Õ) 1.0
Phase Single-phase
Dimension (L¡ÁW¡ÁH) (mm) 595¡Á410¡Á500
Packing size (L¡ÁW¡ÁH) (mm) 620¡Á435¡Á535
Net / Gross weight (kg) 46 / 50
Structure model Open-frame
Engine model YK170F
Engine type
Single-cylinder, 4-stroke, air-cooled,
direct-injection, diesel engine
Displacemetn (cc)
211
Compression ratio
20:1
Rated output / Speed [kW(HP)/rpm)
2.5 (3.4) / 3000
Starting system
Recoil starter
Fuel tank capacity (L)
2.5
Lube capacity (L)
0.75
Fuel type
Diesel 0# (summer), diesel -10# (winter)
Lube brand
SAE10W30 (above CC grade)
Low oil pressure alarm system
With
