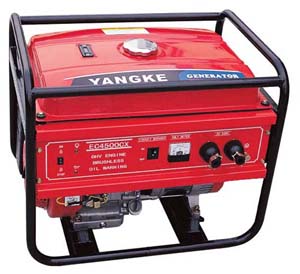

Air-cooled Gasoline Generator Set EC4500CX
     Features:
*4-stroke OHV engine (overhead valve).
*Brushless alternator.
*Transistor Controlled Ignition (T.C.I.)
*Low noise design.
*High quality welded open frame.
*Oil Watch warning system.
*Fuel Gauge.
*Voltmeter



Technology Parameter
Model
EC4500CX
Rated frequency (Hz) 50 60
Rated voltage (V) 220 110 / 220
Rated current (A) 13.6 30 / 15
Rated output power (kVA) 3.0 3.3
Rated speed (rpm) 3000 3600
DC output 12V / 8.3A (option)
Power factor (cos¦Õ) 1.0
Phase Single-phase
Noise level [dB(A)/7m] 70~75
Dimension (L¡ÁW¡ÁH) (mm) 680¡Á510¡Á540
Packing size (L¡ÁW¡ÁH) (mm) 700¡Á530¡Á570
Net weight (kg) 68
Structure model Open-frame
Engine model YK240F
Engine type
 Single-cylinder, 4-stroke, air-cooled,
OHV, gasoline engine
Displacemetn (cc)
243
Compression ratio
8.2:1
Rated output / Speed [kW(HP)/rpm)
4.5 (6.1) / 3000
Starting system
Recoil starter
Fuel tank capacity (L)
25.8
Fuel type
Automotive unleaded gasoline
Lube brand
SAE15W40 (above CC grade)
Low oil pressure alarm system
With
