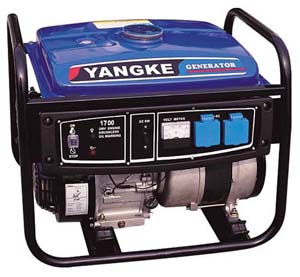

Air-cooled Gasoline Generator Set YK1700
     Features:
*4-stroke OHV engine (overhead valve).
*Brushless alternator.
*Transistor Controlled Ignition (T.C.I.)
*Low noise design.
*High quality welded open frame.
*Oil Watch warning system.
*Fuel Gauge.
*Voltmeter



Technology Parameter
Model
YK1700
Rated frequency (Hz) 50 60
Rated voltage (V) 220 110 / 220
Rated current (A) 5.9 13.6 / 6.8
Rated output power (kVA) 1.3 1.5
Rated speed (rpm) 3000 3600
DC output 12V / 8.3A (option)
Power factor (cos¦Õ) 1.0
Phase Single-phase
Noise level [dB(A)/7m] 70~75
Dimension (L¡ÁW¡ÁH) (mm) 545¡Á435¡Á445
Packing size (L¡ÁW¡ÁH) (mm) 560¡Á450¡Á480
Net weight (kg) 38
Structure model Open-frame
Engine model YK160F
Engine type
 Single-cylinder, 4-stroke, air-cooled,
OHV, gasoline engine
Displacemetn (cc)
163
Compression ratio
8.5:1
Rated output / Speed [kW(HP)/rpm)
2.8 (3.8) / 3000
Starting system
Recoil starter
Fuel tank capacity (L)
12
Fuel type
Automotive unleaded gasoline
Lube brand
SAE15W40 (above CC grade)
Low oil pressure alarm system
With
