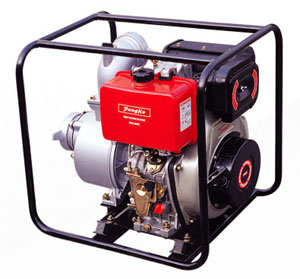

Diesel Engine Self-priming Pumps 100KB16-6
     Features:
* Powered by YANGKE super light, air-cooled,
direct injection, 4-stroke, diesel engines
* Light type aluminium alloy self-suction pump
* High quality mechanical seal device
* Easy maintenance
* Meets a wide range of applications

Technology Parameter
Model
100KB16-6
Suction, discharge port diameter [mm(inch)]
100 (4")
Cont. capacity (m3/h)
40
Cont. head (m)
16
Self-priming time (s/4m)
180
Max suction head (m)
8
Rotation speed (rpm)
3000
Fuel consumption (g/kW×h)
≤273
Dimension (L×W×H) (mm)
645×480×600
Packing size (L×W×H) (mm)
665×500×635
Net weight (kg)
59
Engine model
YK186F
Rated output [kW (HP)]
5.6 (7.6)
Rated speed (rpm)
3000
Fuel tank capacity (L)
5.5
Displacement (cc)
406

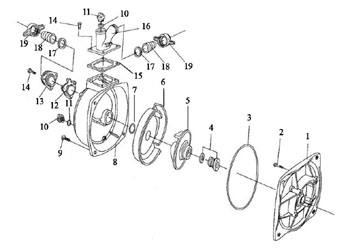

Water Pump Parts List

No.
Description
名称
QTY
数量
No.
Description
名称
QTY
数量
1
Pump cover
泵盖
1
11
Plug packing
螺塞O型圈
2
2
Hexagon recessed head bolt M8×45
外六角螺栓
M8×45
4
12
Check valve
单向阀
1
3
O-Ring
O型圈
1
13
Suction flange
进水法兰
1
4
Seal unit
机械密封
1
14
Hexagon recessed head bolt M10×25
外六角螺栓
M10×25
8
5
Water pump impeller
水泵叶轮
1
15
Rubber ped
橡胶方垫
1
6
Volute casing
涡壳
1
16
Discharge flange
出水法兰
1
7
Rubber packing ring
涡壳密封圈
1
17
Rubber packing
接口橡胶垫
2
8
Housing of pump
泵壳
1
18
Pipe joint
管接头
2
9
Hexagon recessed head bolt M10×30
外六角螺栓
M10×30
4
19
Joint grip
管接头手柄
2
10
Plug
螺塞
2
