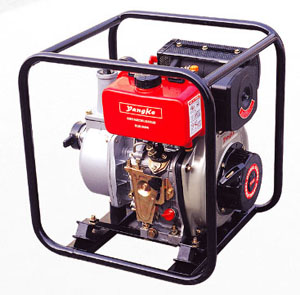

Diesel Engine Self-priming Pumps 50KB15-3
     Features:
* Powered by YANGKE super light, air-cooled,
direct injection, 4-stroke, diesel engines
* Light type aluminium alloy self-suction pump
* High quality mechanical seal device
* Easy maintenance
* Meets a wide range of applications

Technology Parameter
Model
50KB15-3
Suction, discharge port diameter [mm(inch)]
50 (2")
Cont. capacity (m3/h)
22
Cont. head (m)
15
Self-priming time (s/4m)
80
Max suction head (m)
8
Rotation speed (rpm)
3000
Fuel consumption (g/kW×h)
≤284
Dimension (L×W×H) (mm)
500×410×500
Packing size (L×W×H) (mm)
515×425×520
Net weight (kg)
35
Engine model
YK170F
Rated output [kW (HP)]
2.5 (3.4)
Rated speed (rpm)
3000
Fuel tank capacity (L)
2.5
Displacement (cc)
211

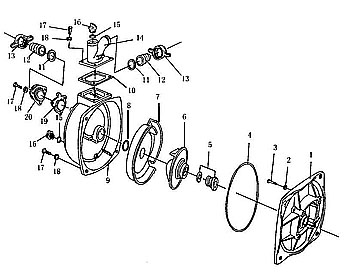

Water Pump Parts List

No.
Description
名称
QTY
数量
No.
Description
名称
QTY
数量
1
Pump cover
泵盖
1
11
Rubber packing
橡胶垫圈
2
2
Rubber washer
橡胶垫圈
4
12
Pipe joint
管接头
2
3
Hexagon socket head bolt
内六角螺栓
4
13
Joint grip
接头手柄
2
4
O-Ring
O型圈
1
14
Discharge flange
出水法兰
1
5
Seal unit
密封元件
1
15
Plug packing
螺塞密封垫
2
6
Water pump impeller
水泵叶轮
1
16
Plug
螺塞
2
7
Volute casing
涡壳
1
17
Hexagon head bolt
六角螺栓
11
8
Rubber packing ring
橡胶密封圈
1
18
Spring washer
弹簧垫圈
11
9
Housing of pump
泵壳
1
19
Check valve
单向阀
1
10
Rubber shim
橡胶垫
1
20
Suction flange
进水法兰
1
