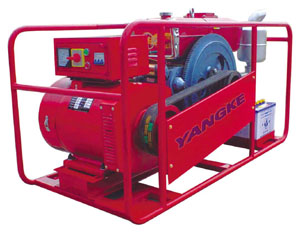

Single-cylinder diesel generator set
     Features:
1.DIESEL GENERATING SETS:
Diesel generating sets include diesel engine,
alternator and control box, frame with rubber tyre.
2. STARTING METHOD OF GEN-SETS:
A. Manual starting.
B. Electric starting (option).
3.CONTROL SYSTEM:
Apparatus: voltmeter, transition switch, indicator light.
Control section: Starting handler, key type switch (for electric starting model).



Technology Parameter
Model
8GF-SF
10GF-SF
12GF-SF
Alternator model
STC-8 / TWG-8
STC-10 / TWG-10
STC-12 / TWG-12
Alternator type
Three times harmonic excitation with brush / brushless self-excitation with AVR alternator
Rated frequency (Hz)
50 / 60
Rated voltage (V)
50Hz: 400/230, 230 or 60Hz: 240/120, 120
Rated ouptut power (KW)
8
10
12
Power factor (cos¦µ)
Single phase: 1.0 or three phase: 0.8
Phase number
Single phase or three phase
Rated rotation speed (rpm)
1500 / 1800
Dimension ((L¡ÁW¡ÁH) (mm)
1470¡Á800¡Á1220
1600¡Á800¡Á1220
1600¡Á800¡Á1220
Net weight (kg)
350
360
380
Engine model
S1100 (M)
S1105 (M)
S1110 (M)
Engine type
Water-cooled, 4-stroke, single-cylinder, diesel engine
Bore ¡Á Stroke (mm)
100¡Á115
105¡Á115
110¡Á115
Displacement (L)
0.903
0.996
1.093
Compression ratio
17
17
17
Rated output / Speed
11 (15) / 2200
12.13 (16.5) / 2200
13.24 (18) / 2200
Fuel consumption (g/kW¡Áh)
238
Cooling method
Hopper or radiator
Fuel tank capacity (L)
11.5
14.5
15.5
Starting method
Hand cranking (electric) starter
